Description:：

Used in ICU, emergency department, operating room and family ward.

Main Features:

1. Multifunctional, microcomputer controlled, constant volume, pressure triggered.

2. Can effectively avoid human-computer confrontation with advanced synchronizing function. Be useful for both invasive and noninvasive.

3. Large LCD screen, detection function of pressure waveform and flow waveform.

4. Power-on self test (the tightness of tubes, battery remaining capacity, etc.)

5. Safety lock function, preventing misoperation.

6. The main components are imported high-end devices, integrated gas circuit structure, long-term stable and reliable operation.

Technical parameters:

Ventilation mode: CMV, A/C, SIMV, Sigh, Manual, etc.

Tidal Volume: at least 50-2000ml

Inspiratory Time: 0.3 ~ 6s

Respiratory Rate: 1-100bpm, 1-40bpm for SIMV

Oxygen Concentration: 40 ~ 100%, continuously adjustable, accurate digital display

Synchronous trigger sensitivity: -19 ~ 19hpa

Sigh: 1 per 100 times, or adjust according to the needs

PEEP: 0 ~ 20hpa, continuously adjustable, precise electronic control regulation

Build-in rechargeable Li-battery working time: more than 8 hours

Monitoring and Alarm Function:

Multiple parameters monitoring and display functions.

Multiple alarm and prompt functions.

Multiple security protection functions.

Service Conditions:

Power Supply: AC, Build-in Li-battery..

Gas Supply: Oxygen cylinder, Central oxygen supply.

Basic configuration:

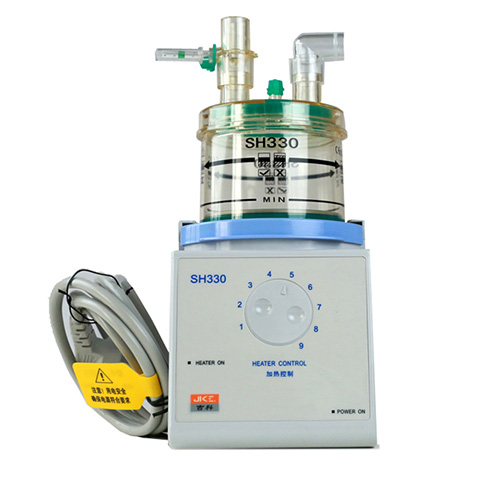

Mainframe of ventilator, trolley, support arm, humidifier, silicone breathing circuits (reusable, which can be sterilized by high temperature and high pressure ), etc.
